Product Overview

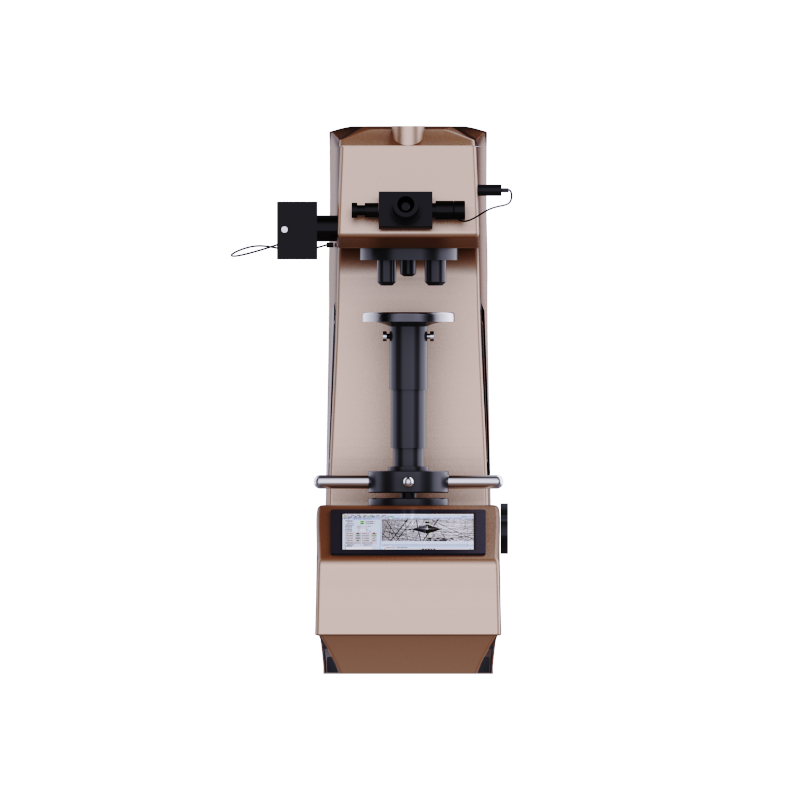

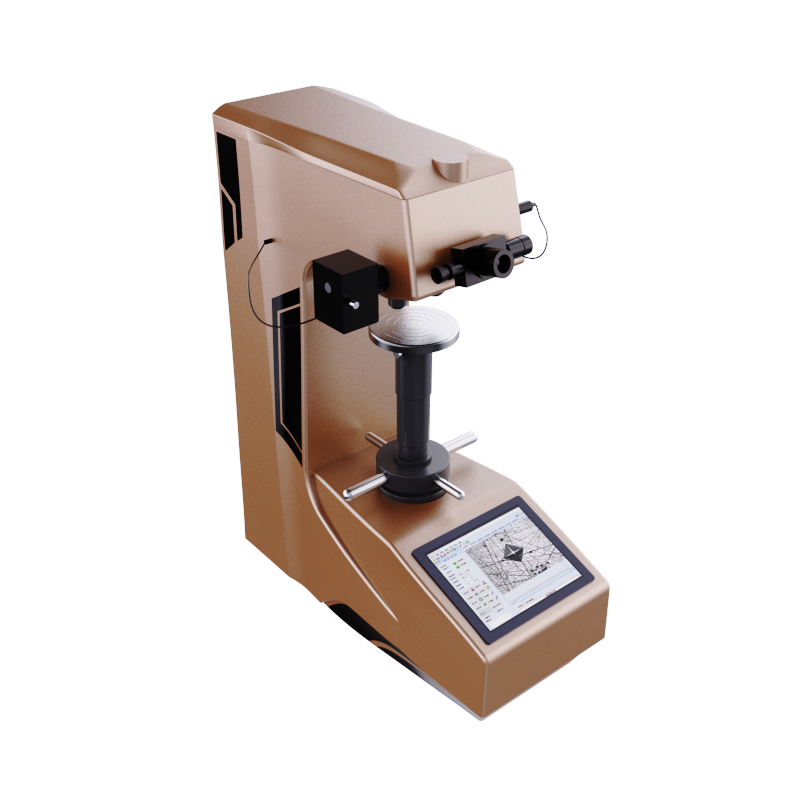

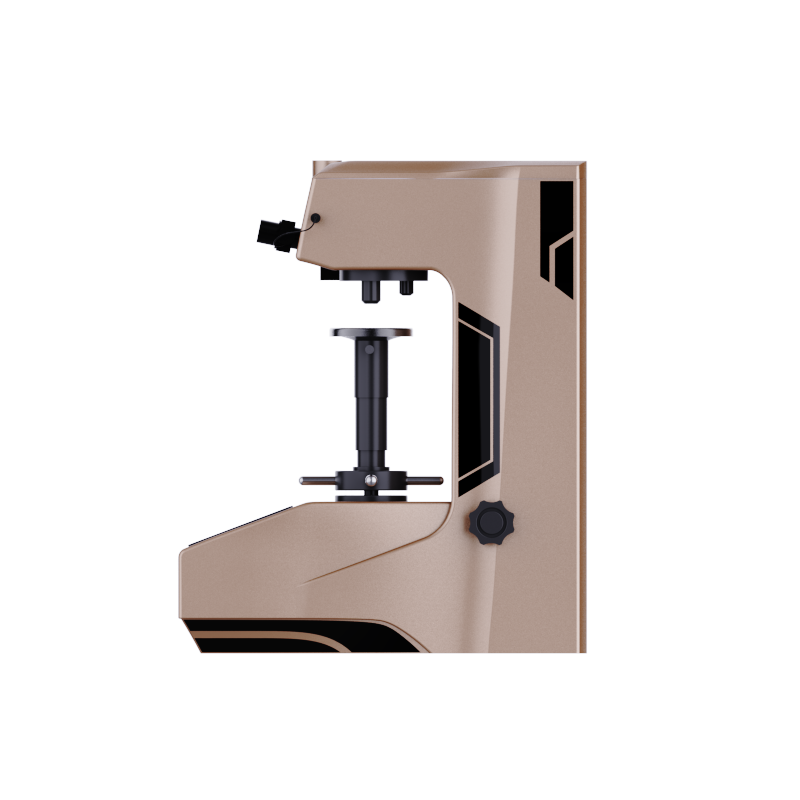

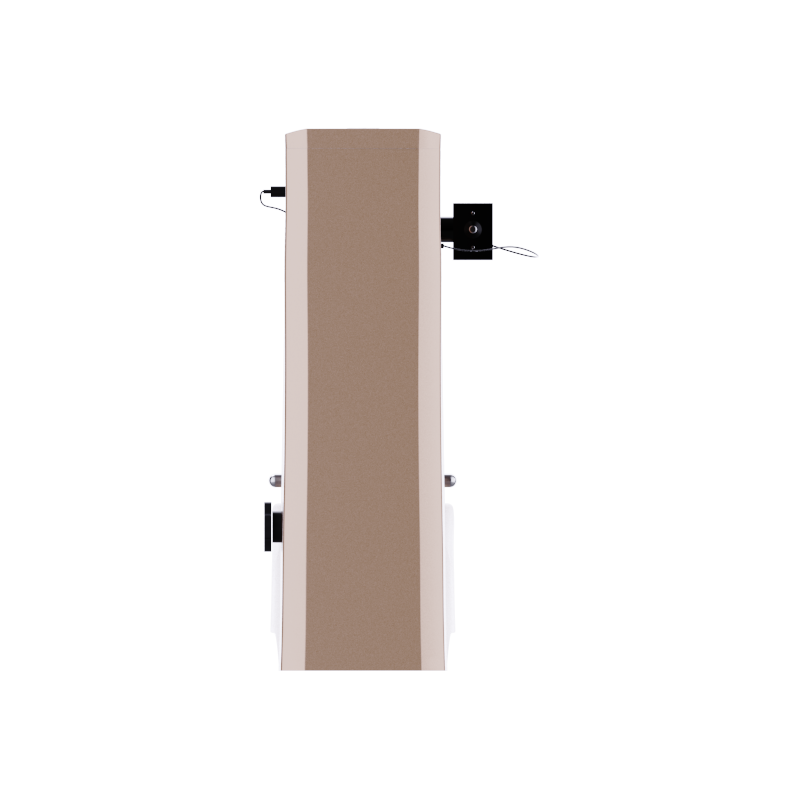

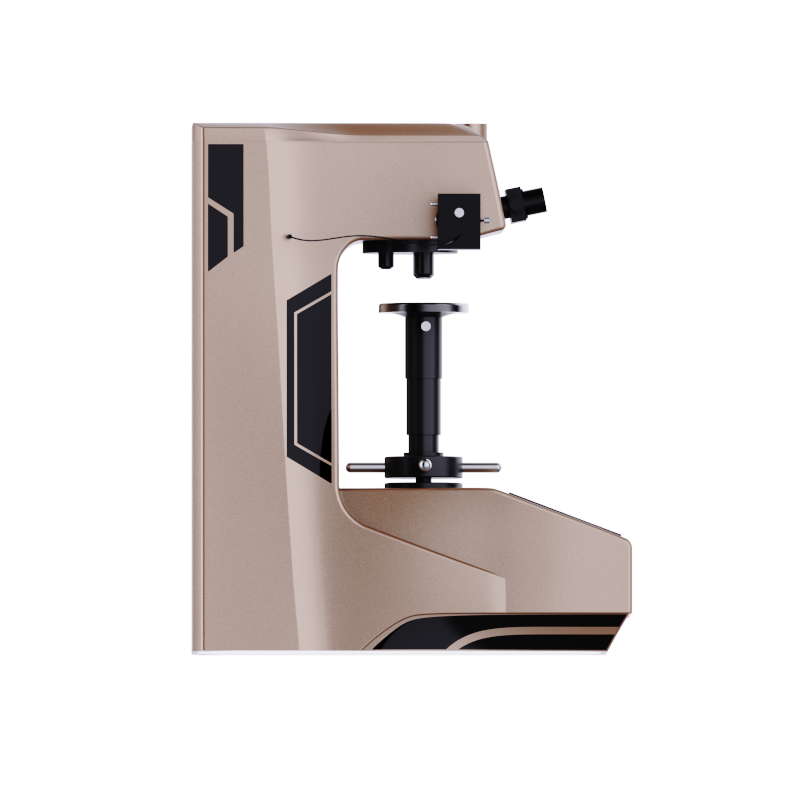

The YHV(S)-5/10/30/50(A)T Touchscreen (Digital) (Automatic Turret) Vickers Hardness Tester utilizes an 8-inch touchscreen and high-speed ARM processor, providing an intuitive display, user-friendly interaction, and straightforward operation. It offers fast computation speed, massive database storage, automatic data correction, and provides data trend line reports.

Product Introduction

1. The body is cast in high-quality iron in one go, complemented with automotive paint treatment process, resulting in a smooth and attractive appearance.

2. Equipped with an automatic turret function, high-resolution measuring and observing objectives, combined with a built-in length encoder for high-definition digital measurement eyepiece, it enables one-touch measurement of the diagonal line of the indentation, eliminating human-operational interference and reading errors.

3. Convenient operating system that can automatically convert units for the full hardness scale.

4. Capable of setting maximum and minimum hardness values; an alarm sounds when the test value exceeds the set range.

5. Features software hardness value correction within a certain range directly.

6. Incorporates a database function, automatically saving test data in groups, with each group capable of saving 10 sets of data, supporting storage of over 2000 data sets.

7. Offers hardness value curve display function, visually showing changes in hardness values.

8. Optional CCD image processing system available, as well as optional Knoop indenter for Knoop hardness measurement.

9. Configured with a wireless Bluetooth printer, and capable of outputting data through RS232, USB interfaces (optional).

10. Accuracy compliant with GB/T4340.2, ISO6507-2, and ASTM E92 standards.

Application Range

1. Suitable for hardness testing of black metals, non-ferrous metals, IC wafers, surface coatings, and laminated metals.

2. Applicable for glass, ceramics, agate, gems, and thin plastics.

3. Depth and gradient hardness testing for carburized layers and quenched layers.

4. Suitable for precision Vickers measurement of parallel planes, tiny parts, and ultra-thin parts.

Technical Specifications

Standard Configuration Of Accessories

The above is the standard configuration. Actual products are subject to physical objects.
