Product Brief Description

1. 8-inch touch screen display

2. Worm and worm gear lifting, precise positioning

3. Automatic loading, holding load, and unloading

4. Automatic turret rotation, digital measurement

5. Equipped with a database, capable of storing 2000 sets of data

Product Overview

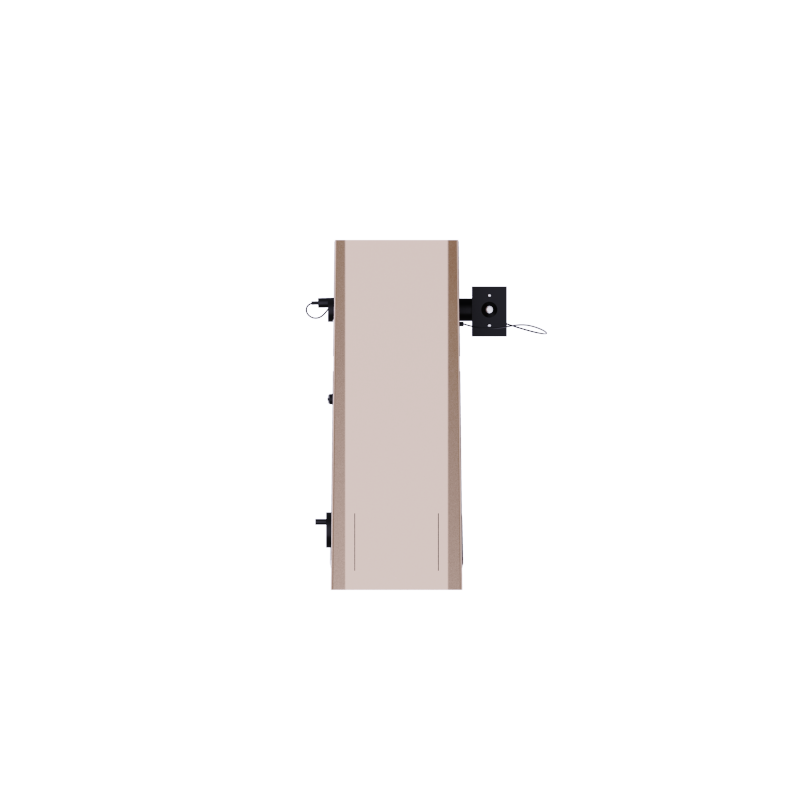

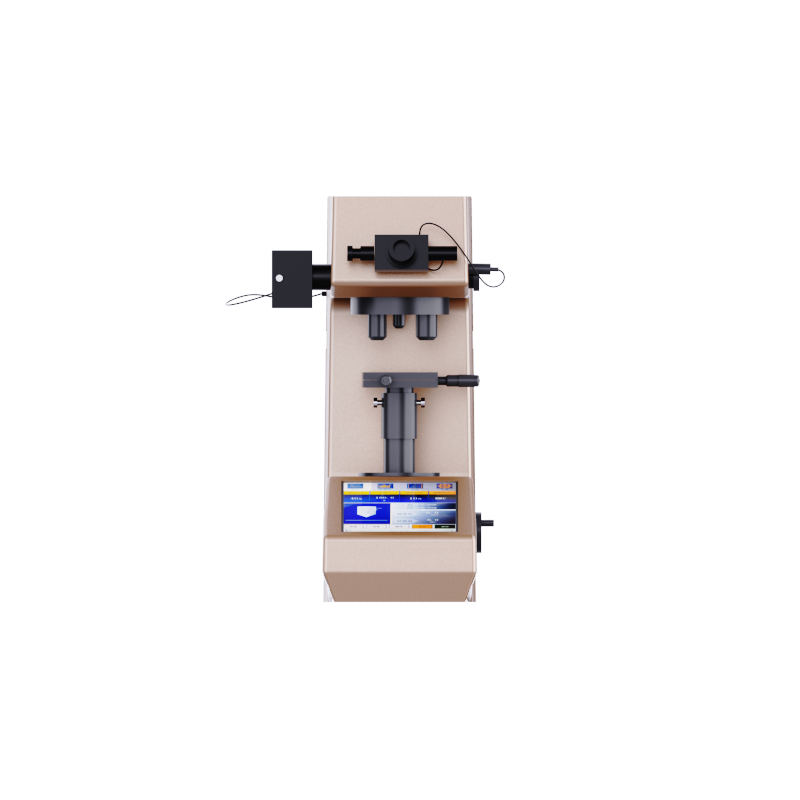

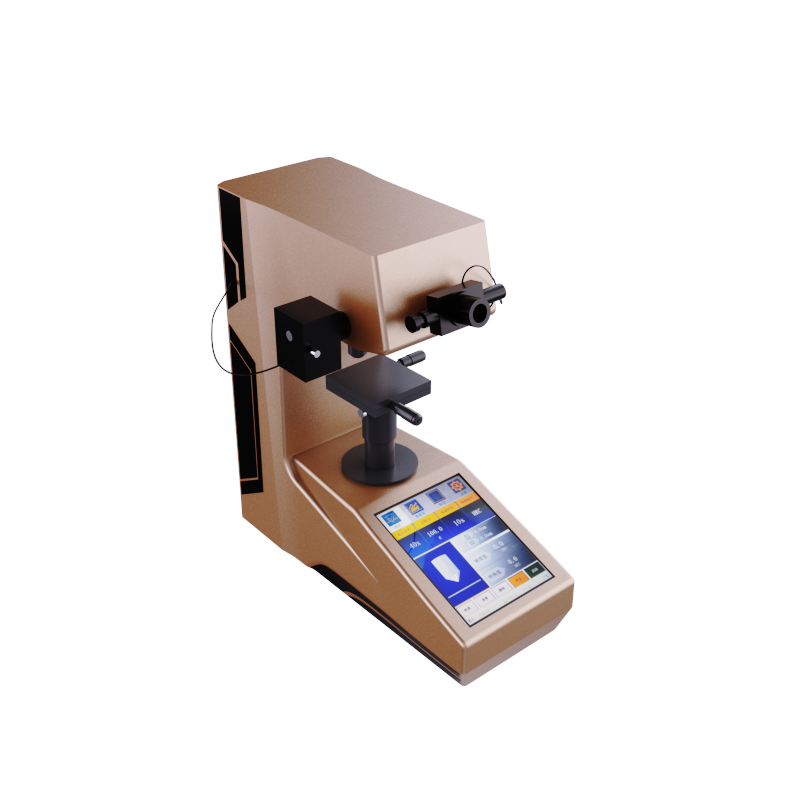

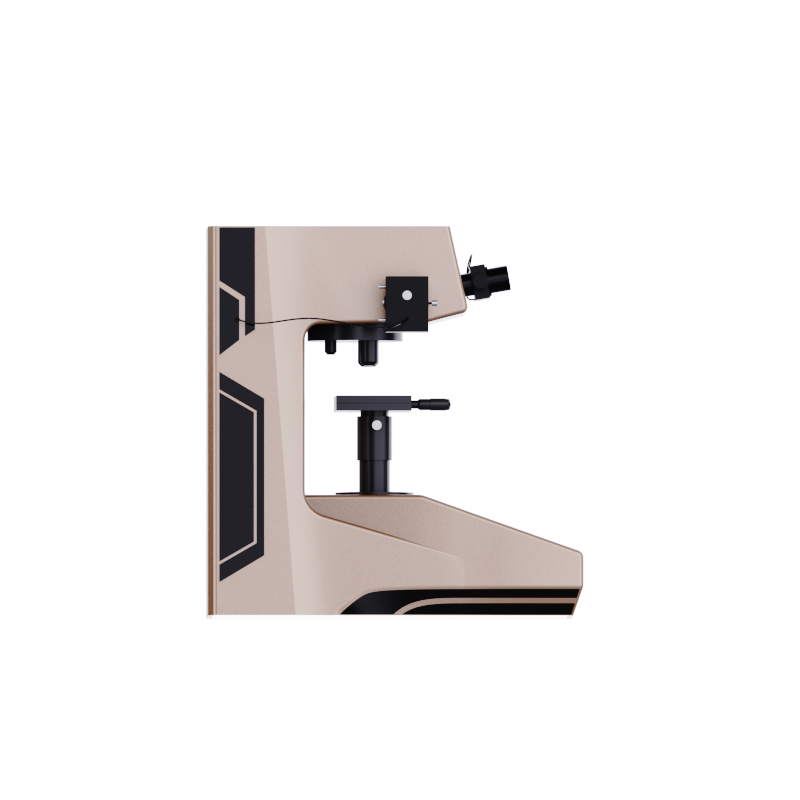

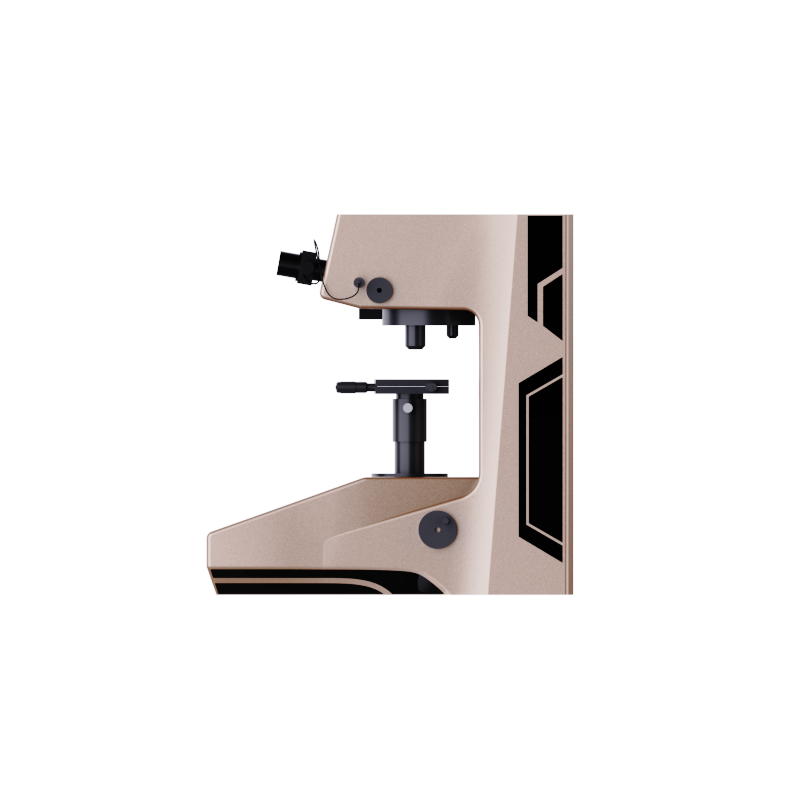

The HVS-1000AT Touch Screen Digital Automatic Turret Micro Vickers Hardness Tester features an 8-inch touch screen and a high-speed ARM processor, providing intuitive display, user-friendly human-computer interaction, and easy operation. It offers fast processing speed, massive database storage, automatic data correction, and provides data line chart reports.

Product Features

1. The machine body is cast in high-quality iron in a single molding process, combined with automotive paint treatment for a sleek and aesthetically pleasing appearance.

2. The worm and worm gear lifting system significantly enhances test stability and accuracy, eliminating the need for refocusing after testing.

3. Equipped with an automatic turret function, high-definition measurement and observation, a dual objective lens combination, and a high-definition measuring microscope with built-in length encoders enable one-touch measurement of indentation diagonals, effectively reducing manual operation interference and reading errors.

4. Convenient CNC system allowing for automatic unit conversion of full hardness scales.

5. Capability to set maximum and minimum hardness values; emits an audible alarm when the test value exceeds the set range.

6. Features software hardness value correction, allowing direct adjustment of hardness values within a certain range.

7. Database feature automatically saves test data in groups, with each group able to store 10 sets of data, totaling more than 2000 data sets.

8. Hardness value curve display function offering visual representation of hardness value changes.

9. Optional CCD image processing system and Rockwell indenter for Rockwell hardness measurement.

10. Equipped with a wireless Bluetooth printer and can output data through RS232, USB (optional) interfaces.

11. Accuracy conforms to GB/T4340.2, ISO 6507-2, and ASTM E384 standards.

Scope Of Application

1. Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;

2. Glass, ceramics, agate, gemstones, thin plastics, etc.;

3. Hardness testing of carbide layers and quenching layers' depth and gradient.

4. Suitable for precision micro-Vickers hardness measurement of parallel planes, small parts, and ultra-thin components.

Technical Specifications

Standard Configuration Of Accessories

The above is the standard configuration. Actual products are subject to physical objects.
