Short Product Description

1.ABS shell and stainless steel standard parts, reliable and durable.

2.The speed of grinding plate and grinding head can be adjusted without pole.

3.The rotation direction of the grinding wheel can be selected arbitrarily.

4.Sampling preparation pressure and time can be set.

5.1-6 samples can be processed simultaneously.

Summary

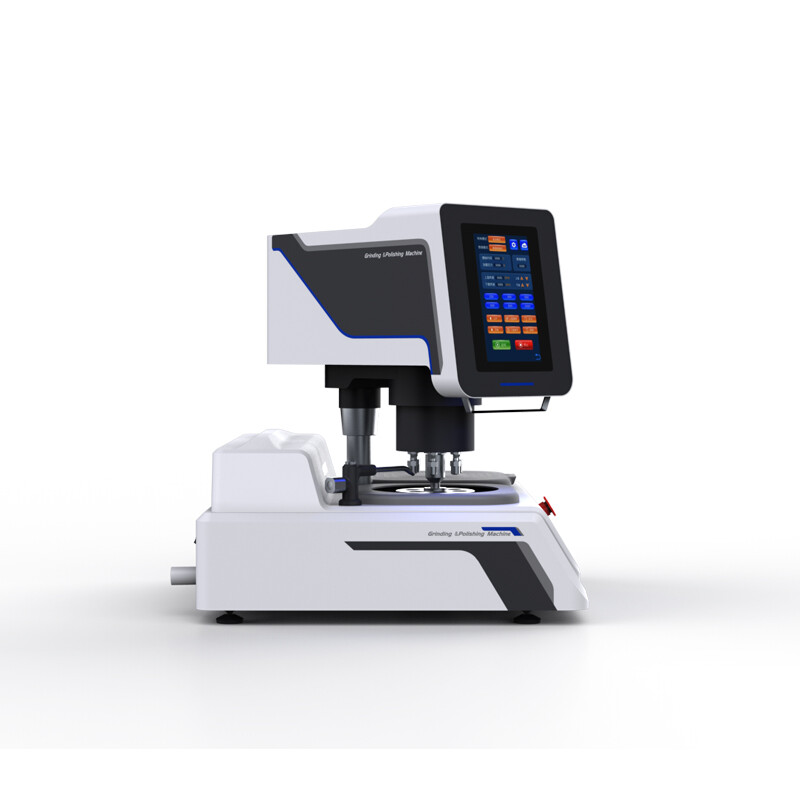

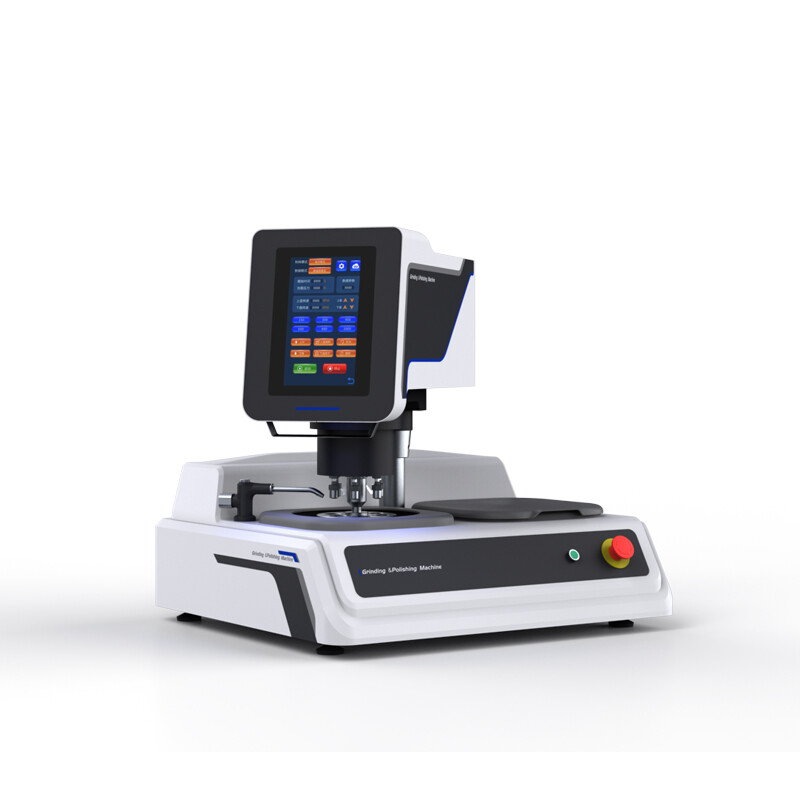

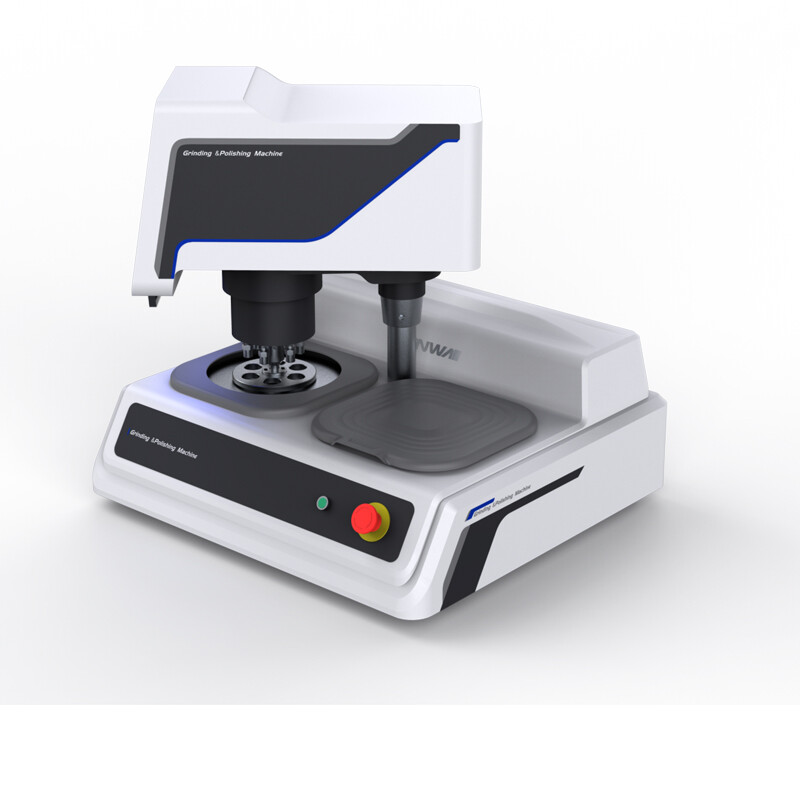

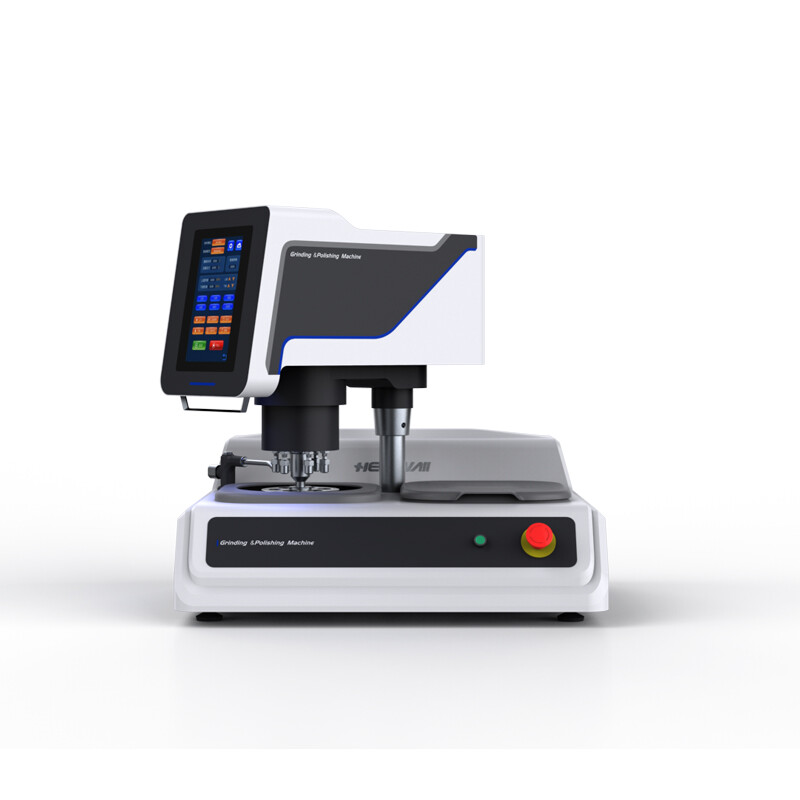

MP-3S automatic grinding machine is a double-disk desktop machine, which is a new generation of international advanced technology manufacturing high precision, automatic grinding and polishing equipment according to international standards.

This machine adopts advanced microprocessor control system, which makes the speed of grinding plate and grinding head stepless adjustable, and the sample preparation pressure and time setting intuitive and convenient. The operator only needs to replace the grinding plate or sandpaper and fabric to complete the operation of grinding and throwing process, so that the machine shows a more extensive application. This machine has the rotation direction, the plate can be replaced quickly; multi-sample gripper and pneumatic single point loading, automatic distribution, smooth rotation, reliability, low noise and the rigidity of casting aluminum base.

This machine has water cooling device and grinding scour nozzle, which can cool the sample during grinding, to prevent the metallographic structure and drain at any time; with abs shell and stainless steel standard parts, more beautiful and generous in appearance, and improve the anti-corrosion and rust performance and easy to clean.

MP-3S automatic grinding machine is suitable for automatic sampling of coarse grinding, fine grinding, coarse polishing to fine polishing process of gold test samples, which is the ideal sampling equipment for enterprises, scientific research units and laboratories of colleges and universities.

The Key Technical Indexes

Ddisc Diameter: φ250mm (customized φ230mm)

Diling Speed: 100-1000 r/min (stespeed)

Speed Of Grinding Head: 5-150 r/min (speed speed)

Added Range: 5-60 Newton (N)

Sample Preparation Time: 0-3000 seconds (S)

Sample Diameter: φ 30mm (customizable)

Input Voltage: single-phase AC220V 50Hz

Input Power: 1.3KW

Overall Dimensions: 750×700×660 (mm)

Net Weight: 75kg

Gross Weight: 120kg

The actual configuration is subject to the custom requirements.
