Summary

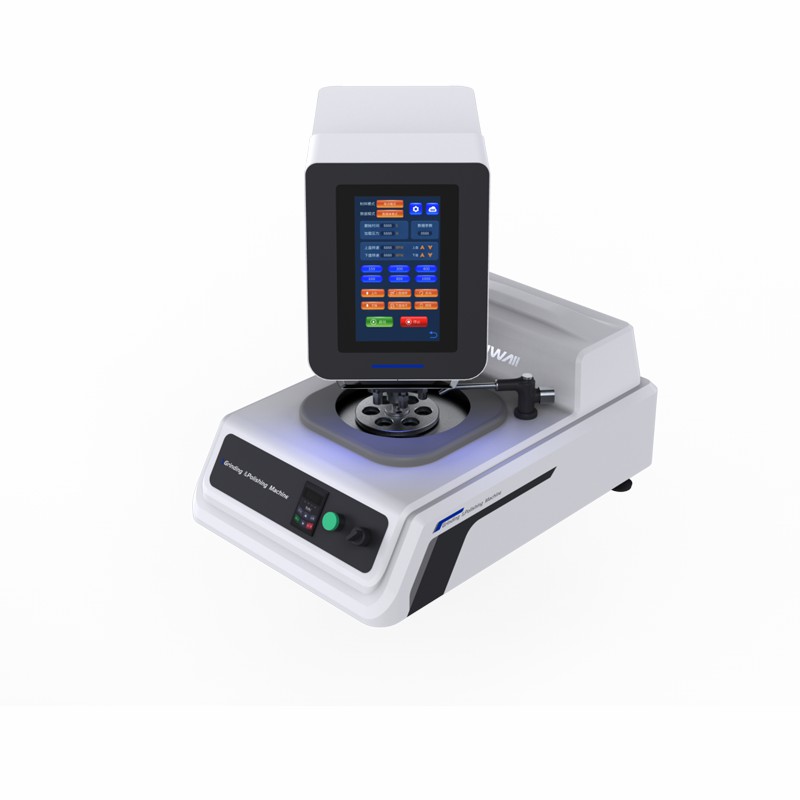

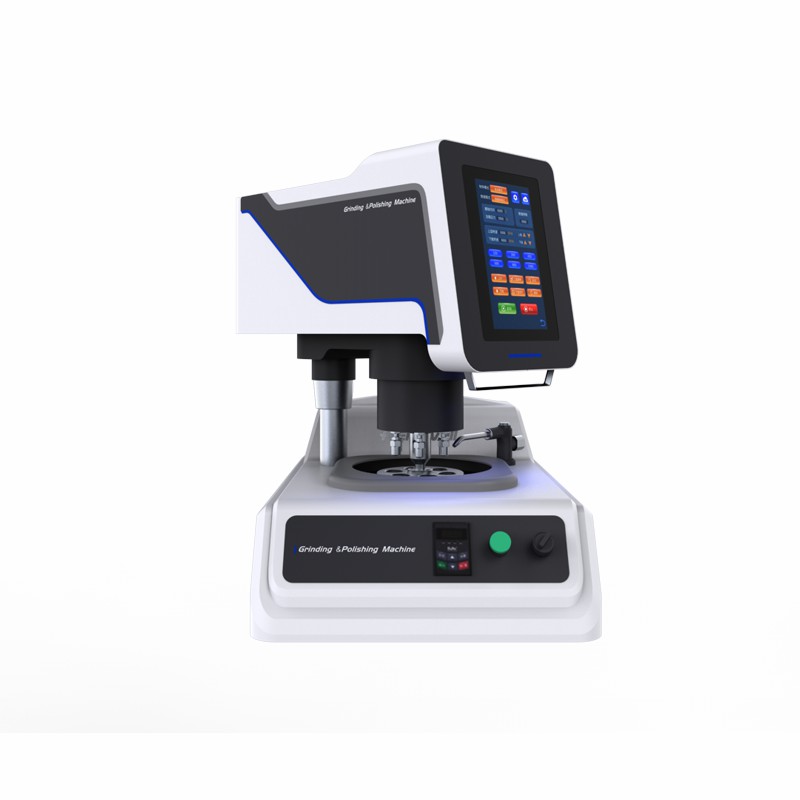

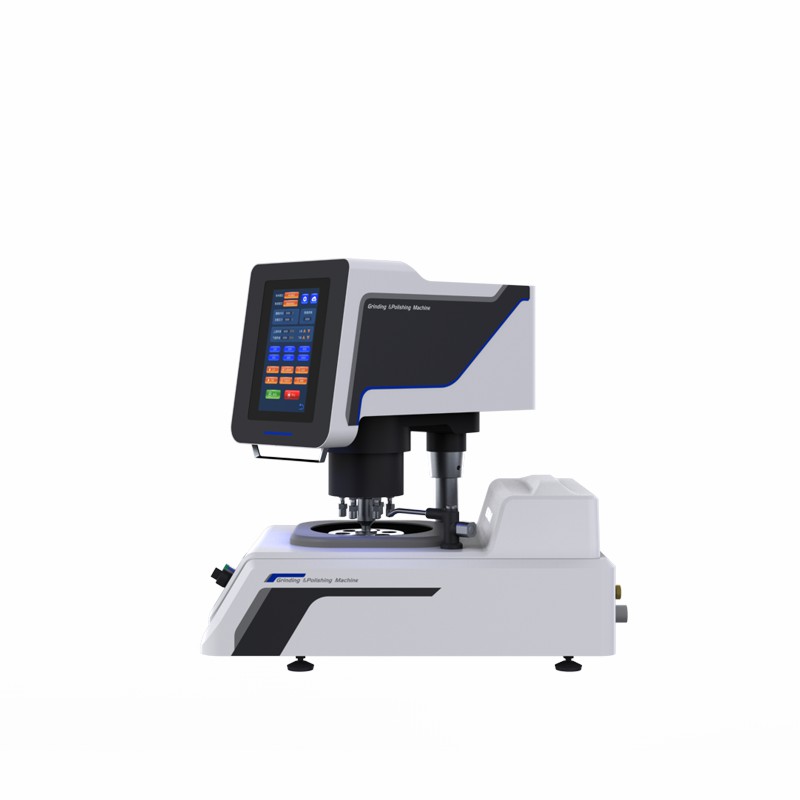

MP-3 automatic grinding machine is a single disk desktop machine, which is a new generation of international advanced technology manufacturing according to international standards.

This machine adopts advanced microprocessor control system, which makes the speed of grinding plate and grinding head stepless adjustable, and the sample preparation pressure and time setting intuitive and convenient. The operator only needs to replace the grinding plate or sandpaper and fabric to complete the operation of grinding and throwing process, so that the machine shows a more extensive application. This machine has the rotation direction of grinding wheel, the grinding wheel can be replaced quickly; multi-sample holder, pneumatic single point loading, smooth rotation, reliability, low noise and increase the rigidity of casting wheel.

This machine has water cooling device and grinding scour nozzle, can cool the sample during grinding, to prevent the metallographic structure and at any time; with ABS shell and stainless steel standard parts, more beautiful and generous in appearance, and improve the anti-corrosion and rust performance and easy to clean.

MP-3 automatic grinding machine is suitable for the process of coarse grinding, fine grinding, coarse polishing to fine polishing. It is the ideal sampling equipment for enterprises, scientific research units and college laboratories.

Technical Parameter

Ddisc Diameter: φ250mm (customized φ230mm)

Turning Speed: 50-1000 r/min (variable speed regulation)

Speed Of Grinding Head: 5-150 r/min (speed speed)

Added Range: 5-60 Newton (N)

Sample Preparation Time: 0-3000 seconds (S)

Sample Diameter: φ 30mm (customizable)

Input Voltage: single-phase AC220V 50Hz

Input Power: 1.3KW

Overall Dimensions: 750×650×500 (mm)

Net Weight: 50kg

Gross Weight: 60kg

The actual configuration is subject to the custom requirements.
