Product Overview

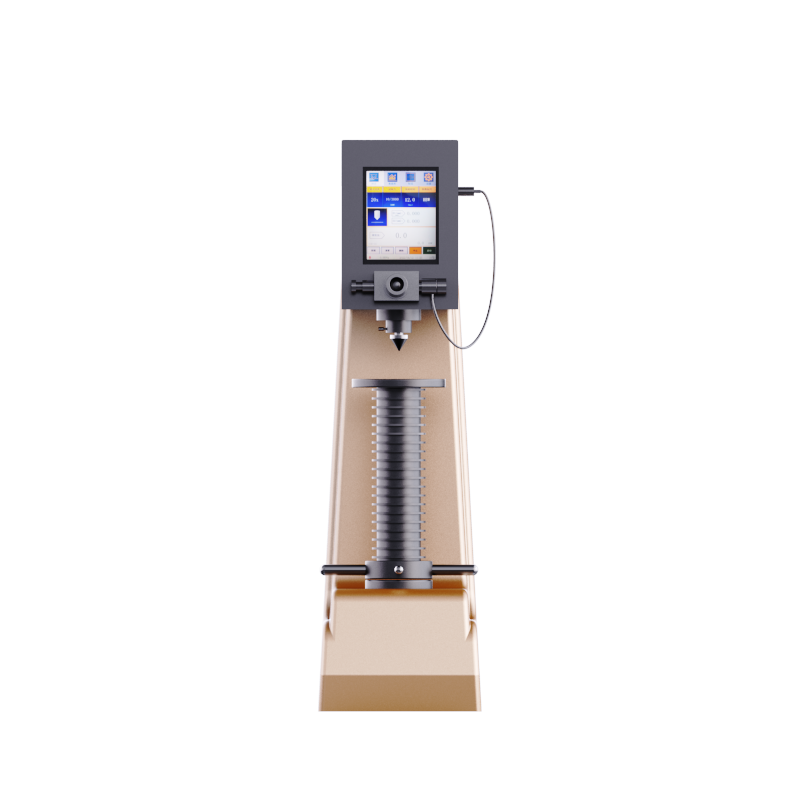

The HBS-3000ET Touch Screen Brinell Hardness Tester (Single Lens) features an 8-inch touch screen and high-speed ARM processor, offering intuitive display, user-friendly human-machine interaction, and fast operation.

Product Introduction

1. Construction: The body is cast in high-quality iron in a single process and then treated with automotive paint, resulting in a rounded and aesthetically pleasing appearance.

2. Convenient Control System: Capable of automatic unit conversion across all hardness scales.

3. Load Control: Utilizes electronic closed-loop control to achieve fully automated loading, holding, and unloading operations.

4. Alarm for Test Values: Provides the ability to set maximum and minimum hardness values, emitting an alarm when the test value exceeds the set range.

5. Hardness Correction: Offers software hardness value correction within a certain range.

6. Data Management: Includes database functionality for automatic grouping and storage of test data, capable of saving over 2000 sets of data, with each group able to store up to 10 data points.

7. Hardness Value Curve Display: Offers visual representation of changes in hardness values.

8. Printing and Data Output: Equipped with a wireless Bluetooth printer and supports data output via RS232 and optional USB interfaces.

9. Accuracy: Complies with DIN EN ISO 6506, ASTM E10, GB/T231-2018 standards.

Application Range

1. Suitable for determining the Brinell hardness of ferrous metals, non-ferrous metals, and bearing alloy materials.

2. Applicable to various materials including hardened steel, aluminum alloys, copper alloys, malleable cast iron, mild steel, quenched and tempered steel, annealed steel, bearing steel, and more.

Technical Specifications

Standard Configuration Of Accessories

The above is the standard configuration. Actual products are subject to physical objects.

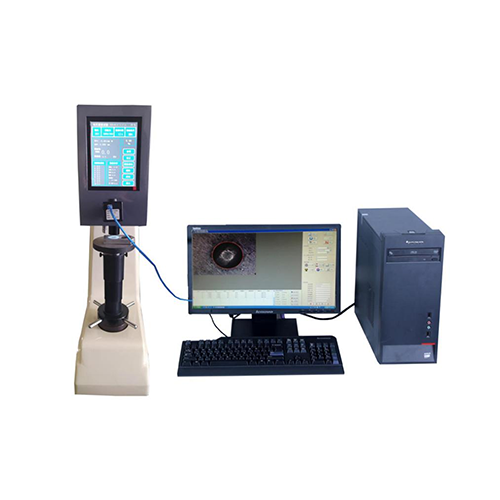

Product Overview

The Brinell hardness tester, equipped with a CCD video measuring device, directly displays the indentation previously seen through the eyepiece of the hardness tester on the LCD screen. This enhanced feature makes the working process more intuitive and ensures more accurate measurements, avoiding human reading errors.

Product Introduction

1. Convenient Portability: The entire system is designed to be compact and delicate, easy to install, and simple to operate.

2. Professional Optical Design: Ensures clear and distinct images of the Brinell indentation.

3. High-Resolution Digital Imaging: Utilizes an industrial-grade digital camera for clear imaging.

4. Precise Image Analysis: Comprehensive shape, brightness, and edge calculations improve the accuracy of measurement results.

5. High-Speed Measurement: Automatic measurement with real-time calculation of accurate hardness values and indentation diameters.

6. Wide Applicability: Suitable for use in laboratories or industrial workshops; provides accurate testing results for polished workpieces or corroded specimens.

7. Powerful Software Functions: Supports single and batch measurements, ASTM/GB hardness conversion tables, data and image storage, database queries, non-conforming value alerts, and SPC program support.

8. Image Capture: Real-time display of hardness indentation images with the ability to store and print images.

9. Indentation Measurement: Automated measurement with good repeatability, high accuracy, broad applicability, supporting both manual measurement and adjustments.

10. Calibration Methods: Utilizes standard hardness block calibration or length scale calibration.

11. Hardness Conversion: Automatically performs various hardness conversions such as Brinell to Rockwell and Vickers based on GB/ASTM standards.

12. Graphic Reports: Automatically records measurement data and outputs customized WORD reports.

13. Data Export: Automatically records measurement data, saving all data in EXCEL format.

Technical Parameters

Software System

1. Host System: 32/64-bit system host, Windows XP and above software platform, non-home edition WINDOWS operating system, full Chinese operating interface, supports color printer output.

2. Resolution of 1024x768 or higher.

3. Official normal installation version of OFFICE office software is required, not the simplified green version of OFFICE.
