Product Overview

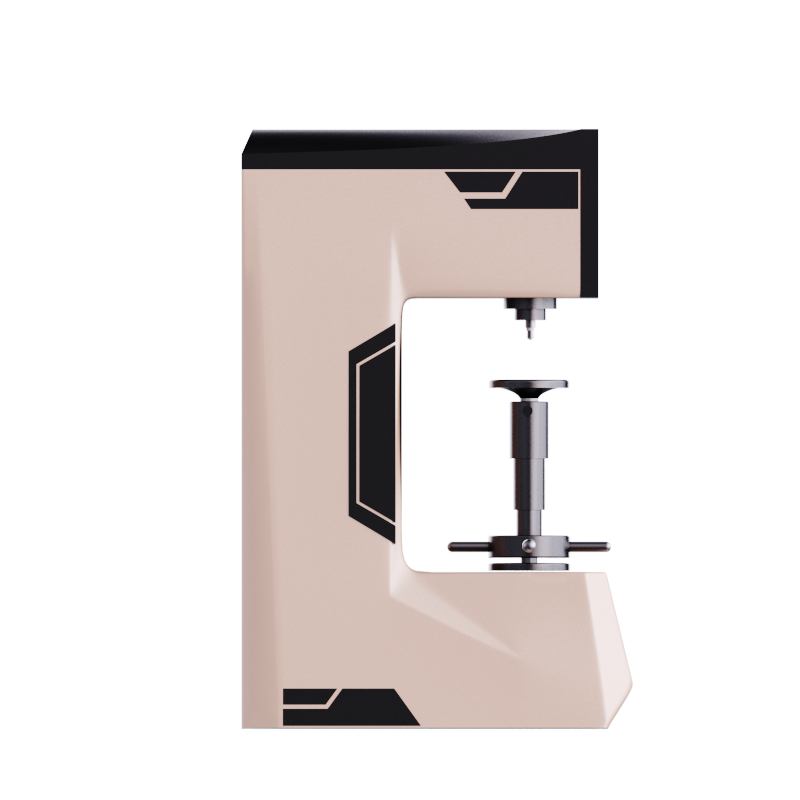

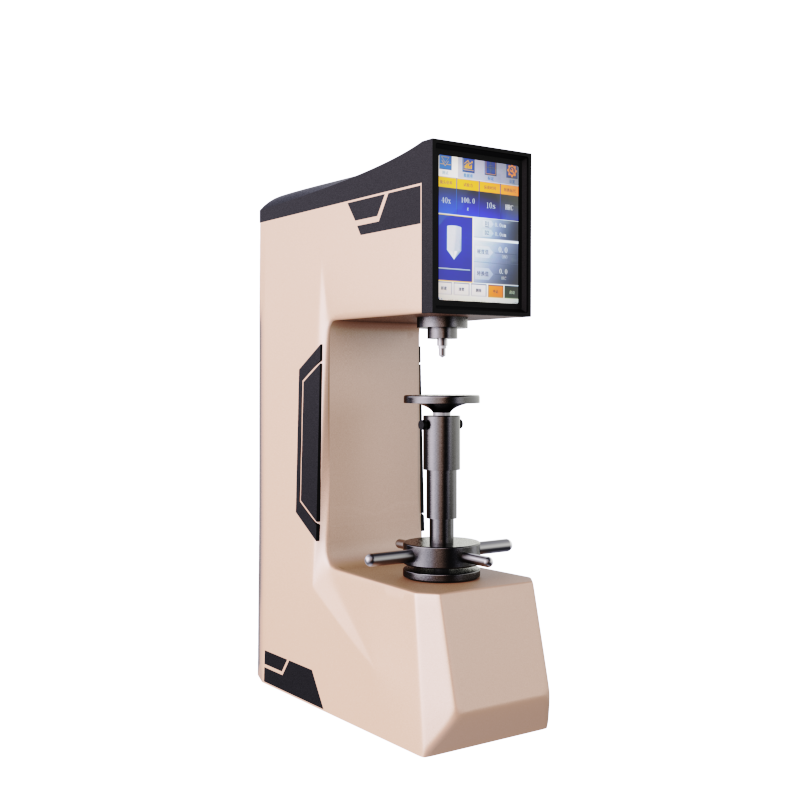

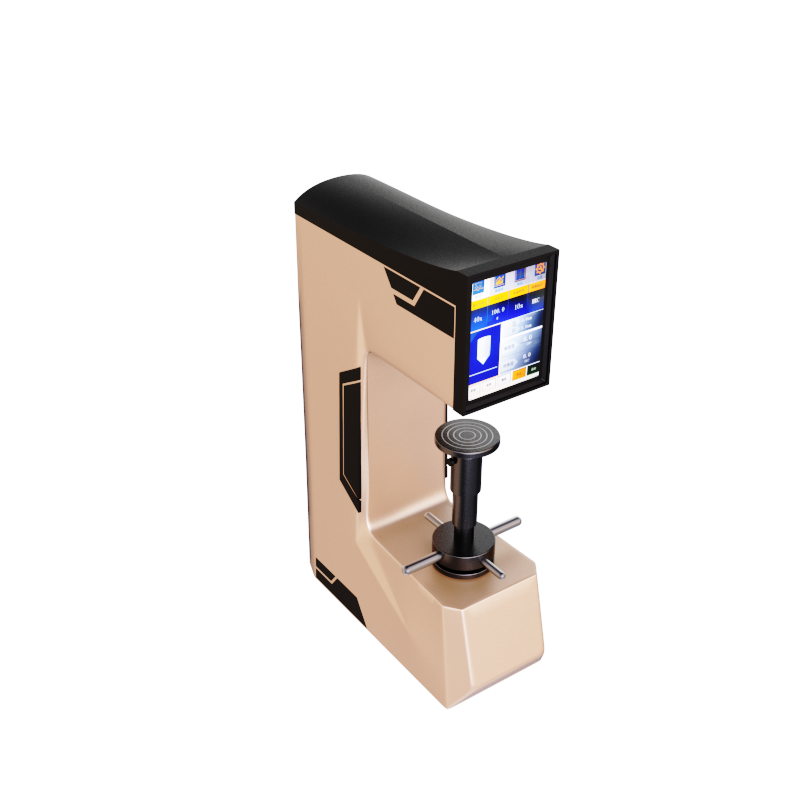

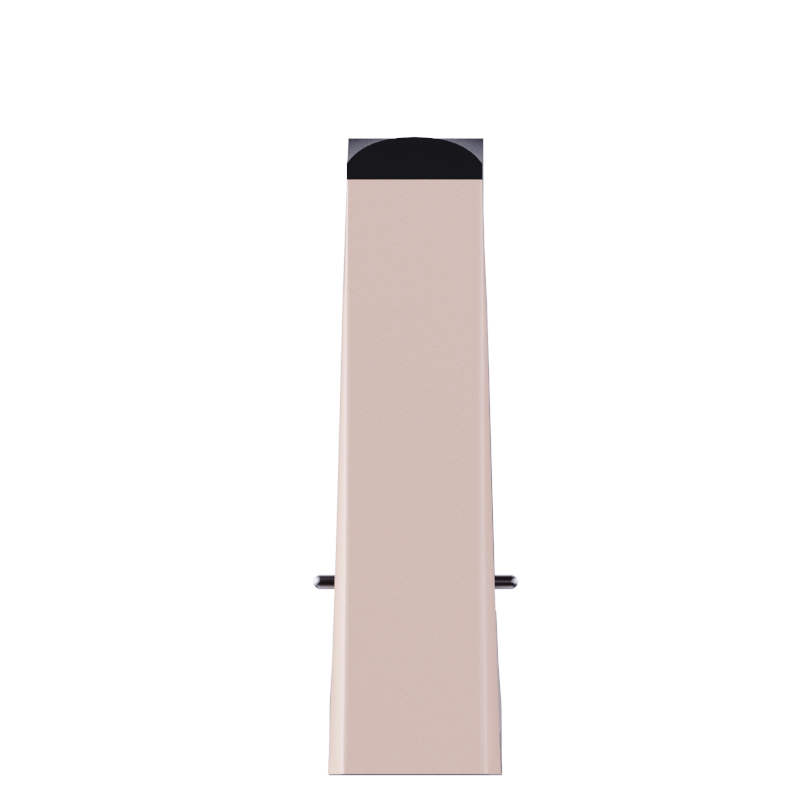

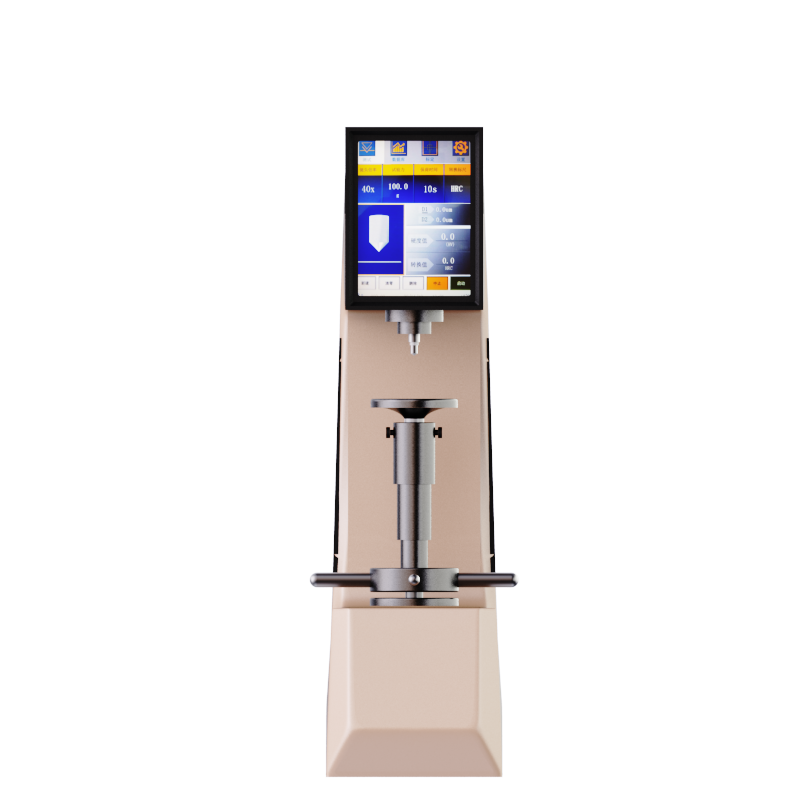

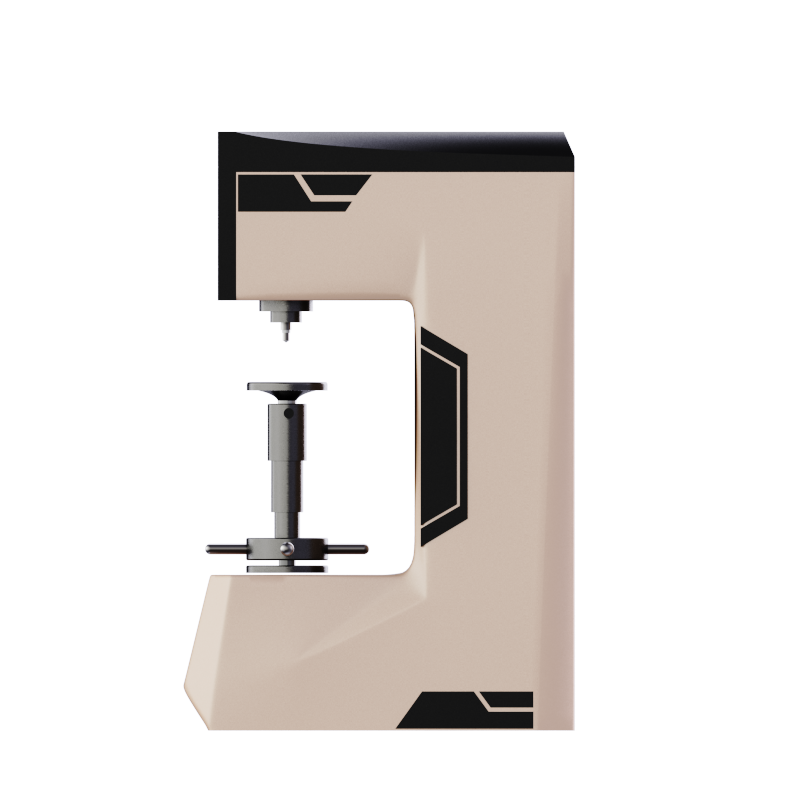

The new HRSS-150 Digital Rockwell Hardness Tester is a multi-functional hardness tester that integrates Rockwell, superficial Rockwell, and plastic Rockwell measurements. It features an 8-inch touch screen and a high-speed ARM processor, providing intuitive display, user-friendly interaction, and easy operation.

Product Introduction

1. The body is made of high-quality cast iron, formed in one casting, and treated with automotive paint for a smooth and aesthetically pleasing appearance.

2. The measuring device utilizes a grating displacement sensor, displaying results on the LCD screen, and allowing for the display and setting of test scales, test force, indenter type, holding time, unit conversion, etc.

3. Electronically closed-loop control applies the test force, fully realizing the automatic operation of force loading, holding, and unloading.

4. Built-in testing software allows for correction of the machine's hardness values.

5. Convenient control system that enables automatic unit conversion for all hardness scales.

6. Incorporates a built-in printer and data output via RS232, USB (optional) interface ports.

7. Accuracy complies with GB/T230.2, ISO 6508-2, and ASTM E18 standards.

Application Range

1. Widely used for determining the Rockwell hardness of ferrous metals, non-ferrous metals, and non-metallic materials.

2. Used for measuring the hardness of plastics, composite materials, various friction materials, soft metals, non-metallic materials, etc.

Technical Specifications

Standard Configuration Of Accessories

The above is the standard configuration. Actual products are subject to physical objects.
