Summary Of Hardware Products

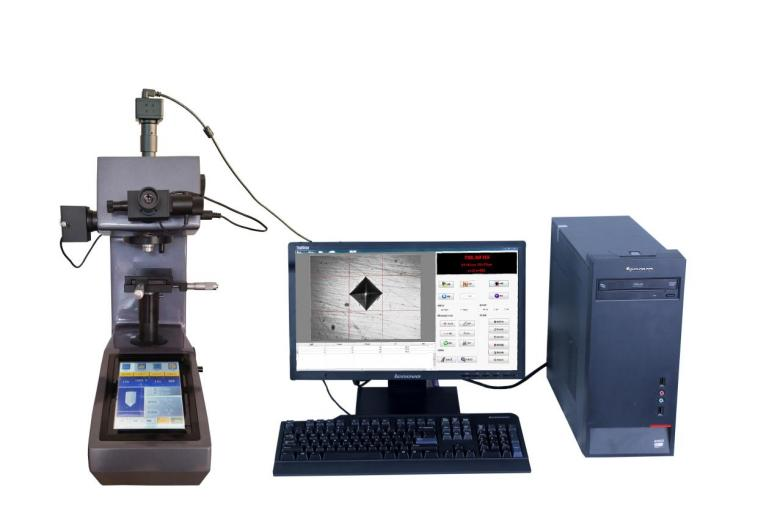

HVS-1000AT touch screen digital display, using 8-inch touch screen and high-speed ARM processor, intuitive display, human-machine interaction, easy operation, fast database storage, automatic data correction, and provide data line report.

Hardware Product Introduction

1. The fuselage uses high quality cast iron primary casting molding, combined with the car paint treatment process, the shape is round and beautiful;

2. The turbine worm lifting system improves the test stability and test accuracy, and there is no need to focus again after the test;

3. Equipped with automatic turret function, high-definition measurement and observation-double objective combination, combined with the built-in length encoder of high-definition microscope, to achieve the diagonal of the indentation one-button measurement, better reduce the human operation interference and reading error;

4. Convenient numerical control system, can automatically carry out the full hardness ruler unit conversion;

5. The maximum and minimum value of hardness value can be set, and when the test value exceeds the set range, the beep sound;

6. With the software hardness value correction function, it can directly correct the hardness value within a certain range;

7. With the database function, the test data can be automatically saved in groups, each group can save 10 data, can save more than 2,000 data;

8. With the hardness value curve display function, intuitive display of the change of the hardness value;

9. Optional CCD image processing system, and optional NUS pressure head, for Nusi hardness measurement;

10. Configure wireless Bluetooth printer and can output data through RS232 and USB (optional) interface;

11. The accuracy is consistent with GB / T4340.2, ISO 6507-2, and ASTM E92.

Applied Range

1. Black metal, non-ferrous metal, IC sheet, surface coating, laminated metal;

2. Glass, ceramics, agate, gems, thin plastic, etc.;

3. Hardness test of the depth and gradient of the carbonization layer and the quenching layer;

4. Suitable for precision microscopic Vionchier hardness measurement of parallel plane and small parts and ultrathin parts.

Technical Specifications

Standard Configuration Of Accessories

Overview of The Image-processing System

CCD vickers image processing system is a computer microcomputer automatic measurement system combined with hardness meter, through the CCD camera interface will digital display cloth, microscopic, vickers hardness meter and computer connected, the whole test process through the simple operation of the keyboard and mouse can be completed, easy to operate, high measurement accuracy, better to reduce human error and avoid operator visual fatigue, can meet the requirements of various hardness measurement.

Software Introduction

1. Through the camera interface will micro hardness meter connected to the computer, image after amplification processing, directly in the computer screen observation and measurement, effectively reduce the operator eye fatigue, reduce the eye system artificial operation error, improve the test efficiency and accuracy, the whole test process through the simple operation of the mouse can be completed;

2. The software image interface is large (800 * 600), the image is clearer, can effectively reduce the operation error;

3. The configuration is suitable for microscopic imaging, macro imaging of high resolution industrial camera, its small size, clear image, good imaging quality;

4. The conversion function of various hardness scales is convenient and practical; and the software has a built hardness and strength conversion table, which is not easy to lose.

5. Powerful data report function:

(1) Test data, indentation pictures, hardness gradient curve diagram can be exported at the same time, more convincing;

(2) To do the hardness gradient test, can automatically draw the hardness gradient curve diagram;

(3) The head of the report, such as: the company name, title, etc., can be set and saved in advance to facilitate the printing of the report.

6. Open the local re-magnify image box to measure the point more accurately and reduce the error;

7. Hardness correction function, such as measurement found a point is not accurate, can be immediately adjusted, correction;

8. The contrast and brightness can be adjusted for the indentation image;

9. Hardness calibration function: direct input hardness value is relatively accurate, convenient and fast;

10. Image files and data files can be opened, stored and printed respectively;

11. Can view the data files and image files at any time, and the data files are printed in the form of tables, images and curves.

Software Attachment Configuration

The above is the standard configuration. Actual products are subject to physical objects.
