Product Presentation

This machine is used for grinding before throwing, for small, not easy to hold or irregular metallographic, rock phase sample inlay. After the inlay, it is easy to grind the sample. Test the specimen under the metallographic microscope and test the hardness of the specimen on the durometer.

This machine upgrades the appearance in a new way, optimizes the internal structure, and improves the efficiency of the heater. The whole machine is standard with active electric cooling fan device, which reduces the cooling waiting time, improves the inlay efficiency of the whole machine, and brings you a new inlay experience.

Technical Specifications

Sample Pressing Diameter: Φ 22, Φ 30, Φ 45mm (choose one of three when ordering)

Temperature Control Range: 0-300℃

Net Weight: 26kg

Timing Range: 0-30min

Heater: AC 220V / 50Hz / 400W

External Size: 380mm ×350mm× 410mm

Accessory Box Standard

Host: one unit

Power Cord: one root

Embedding Material：one pack (500g)

Technical Documents: manual, certificate, warranty card -one of each

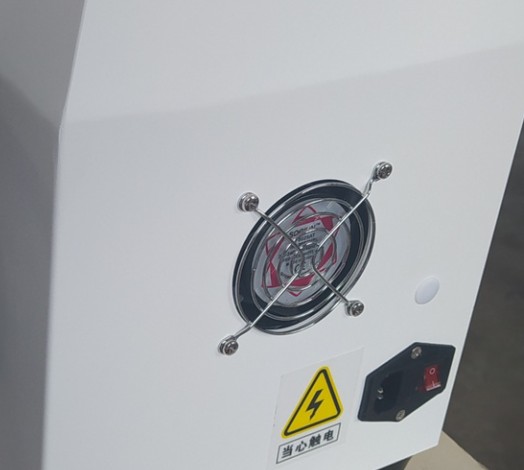

The equipment is equipped with electric active cooling fan, which can effectively reduce the cooling time and improve the inlay efficiency.

Actual configuration may vary based on custom requirements.
