Product Characteristics

• The three axes adopt Taiwan brand high precision V-type guide rail, precision level toothless screw drive.

• Using high quality granite marble base, column, with good temperature stability, effective deformation ability.

• Aluminum alloy integral die-casting working table is used to ensure the accuracy and make the X / Y axis move lighter.

• Finite element structure analysis and optimized structure design ensure the high precision and high stability of the small stroke  image instrument system.

• Using the integrated controller, different from the traditional board card, longer service life, after-sales service is more guaranteed.

  Standard laser positioning pen, convenient to quickly find the measurement position, the novice operation is more convenient.

  Specification Parameters

  Model	VMS -3020
  X Y Z Measuring Stroke	300*200*150
  Operating Distance	90mm
  Outline Dimension Lx*Ly*Lz	700*840*1000
  All-up-weight	30Kg
  Instruments Weight	150Kg
  Source	220V+10%,   50HZ-60HZ
  Certainty Of Measurement	X / Y axis: (3.0 + L / 200) μ m, Z axis optional probe: (5 + L / 200) μ m
  Repeatability Precision	≤3μm
  Control The Drive Counting System	West German high precision edentulous screw
  	Taiwan LEPIN high precision V ball guide
  	The KOMANIE-600 multifunction controller
  	Yihao 0.5 μ m closed glass grating ruler
  Image System	SONY-CCD HD color 1 / 3 ″ 700 TVL camera + image card image magnification 30 X-230X
  	Les HD continuous magnification lens / magnification 0.7-4.5X
  Light Source System	Multi-ring LED ring surface light source + parallel contour LED cold light source + laser positioning lamp
  Computer	Industrial control motherboard memory: 2G, solid state disk: 60G Jinhe Tian chassis + 300 power supply, display: 19 inches

  Optional Accessories

  Order Number	Name	Brand Origin	Ts	Quantity
  1	(Z axis) probe	TELES/MCP	Standard needle measurement (standard φ 2mm / φ 3mm ruby needle)	1




  Measurement Software

  SD-2D/2.5D Measurement software is a simple operation, powerful image measurement software, a collection of complete geometric size (point, line, circle, arc, distance, Angle), shape tolerance (straightness, true circle, degree, position, parallel, verticality) measurement function.

  It is widely used in mechanical processing, electronics, automobile, hardware, mold, precision manufacturing, plastic rubber, photoelectric, mobile phone, PCB board, electronic components, semiconductor, touch screen, LCD panel, medical equipment, cutting tools, bearings, terminals and other industries.

  Software Function

  1. The seat mark translation and the seat mark correction, the measurement is more convenient and fast, improve the measurement efficiency

  2. Convenient and fast element combination function, users only need a simple point selection graphics can combine points, line, circle, distance, Angle

  3. The measurement data is directly sent to the AutoCAD, and the measured graph can be saved by dxf documents

  4. The measurement data can be sent to the Excel for statistical analysis.☆ Traditional Chinese and English three languages

  5. The cross line search edge discoloration, artificial mining point

  6. A variety of edge search mode, the computer automatically take the point, automatically identify the circle, arc, greatly improve the speed of the point

  7. Graphics zoom in, graphics zoom out, graphics translation, graphics printing graphics selected, unselected, graphics deleted

  8. Set the gray scale, saturation and contrast of the image, and save the image in BMP format

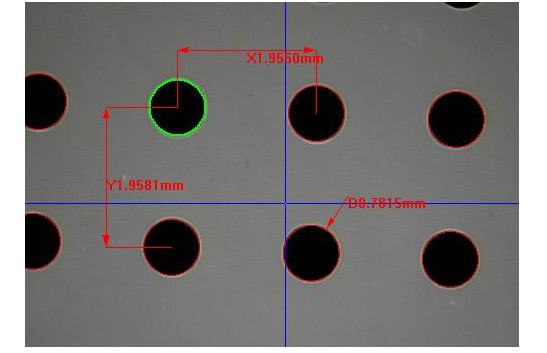

  9. Two-dimensional image calibration for accurate size measurement; including line, circle, angle, rectangle, polygon and other measurement tools, real-time measurement of distance, diameter, Angle, area, circumference and other parameters;

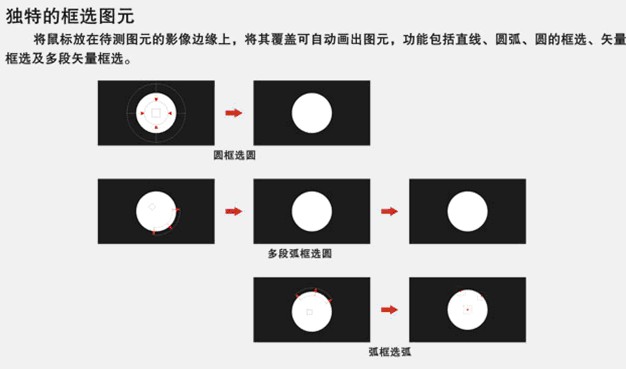

  10. Element measurement: multi-point measurement point, line, circle, arc, ellipse, specify the number of points measurement rectangle, automatically identify points, line, circle, arc

   11. Elemental structure: center point structure, intersection structure, midpoint structure, line structure, circle structure, Angle structure.

   12. Element preset: point, line, circle, arc

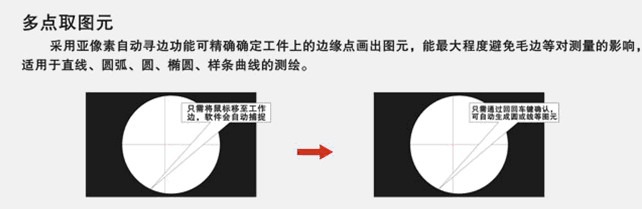

  13. Automatic edge finding function, image sharpening, eliminate the influence of object edge burr, improve the detection accuracy and repeatability. Ring measurement, angle       measurement, line width, line spacing and other measurements.

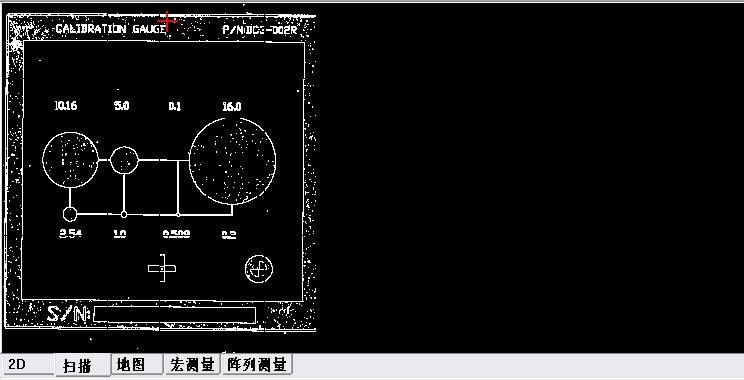

  14. Image scanning function: the manual image instrument can also scan the current image.

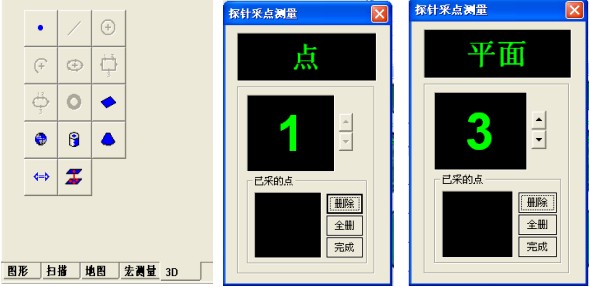

  15. Optional probe function: to achieve the purpose of Z axis direction height measurement, but also to measure the planness of the material surface. It is an auxiliary method  to the two-dimensional measurement of optical images. The image measuring instrument can achieve 2.5D measurement purpose by adding probes, so that users can achieve 2.5D measurement in a real sense.

  16.Report output: the software provides a variety of report output methods for customers to choose from themselves. Data are exported to the specified EXCEL location and  Ca, Cp, CPK equivalent can be calculated automatically calculated
