Product Brief Description

1. Automatic Z-axis lifting

2. Auto loading, dwell, and unloading

3. Automatic turret rotation, auto-focusing

4. CCD automatic indentation capture and measurement

5. One-button operation for convenience

Product Overview

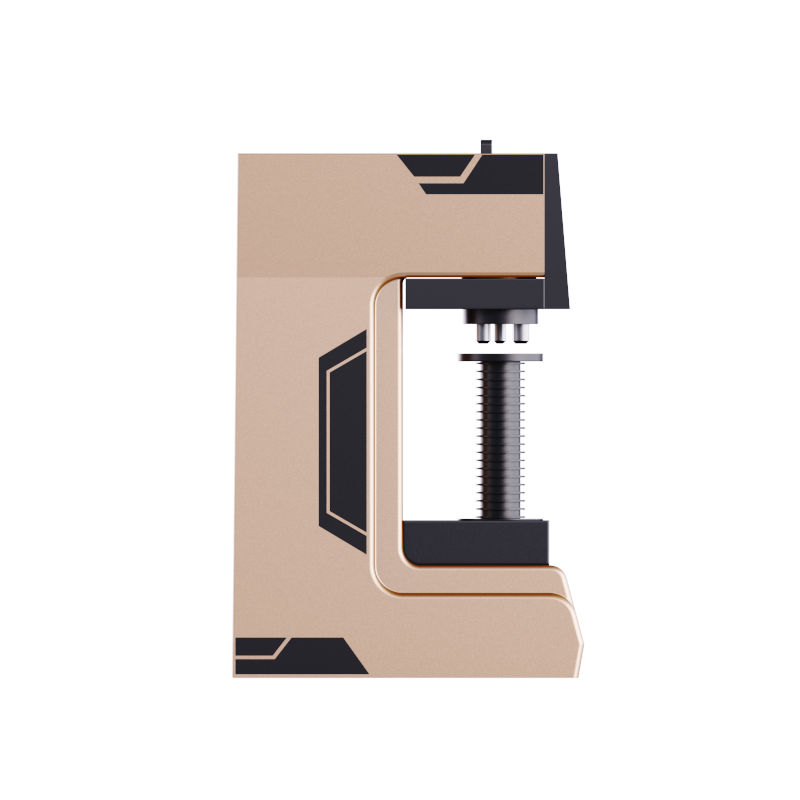

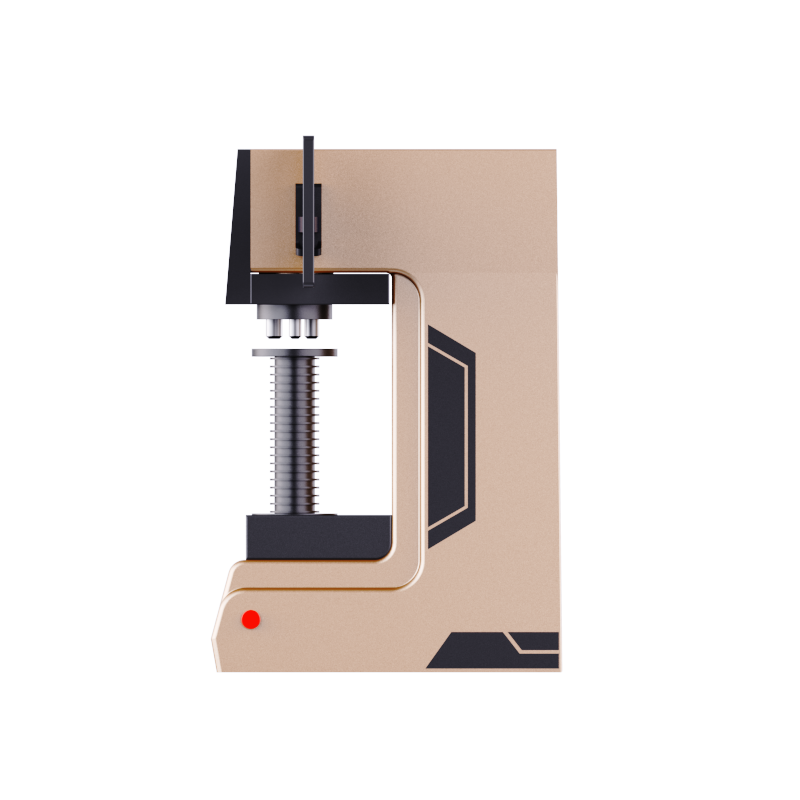

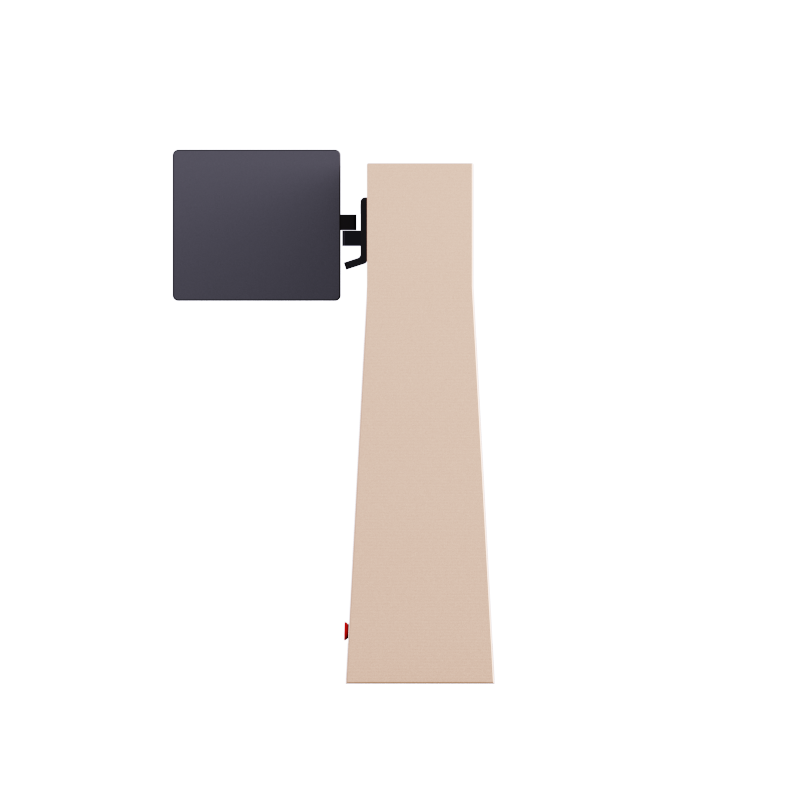

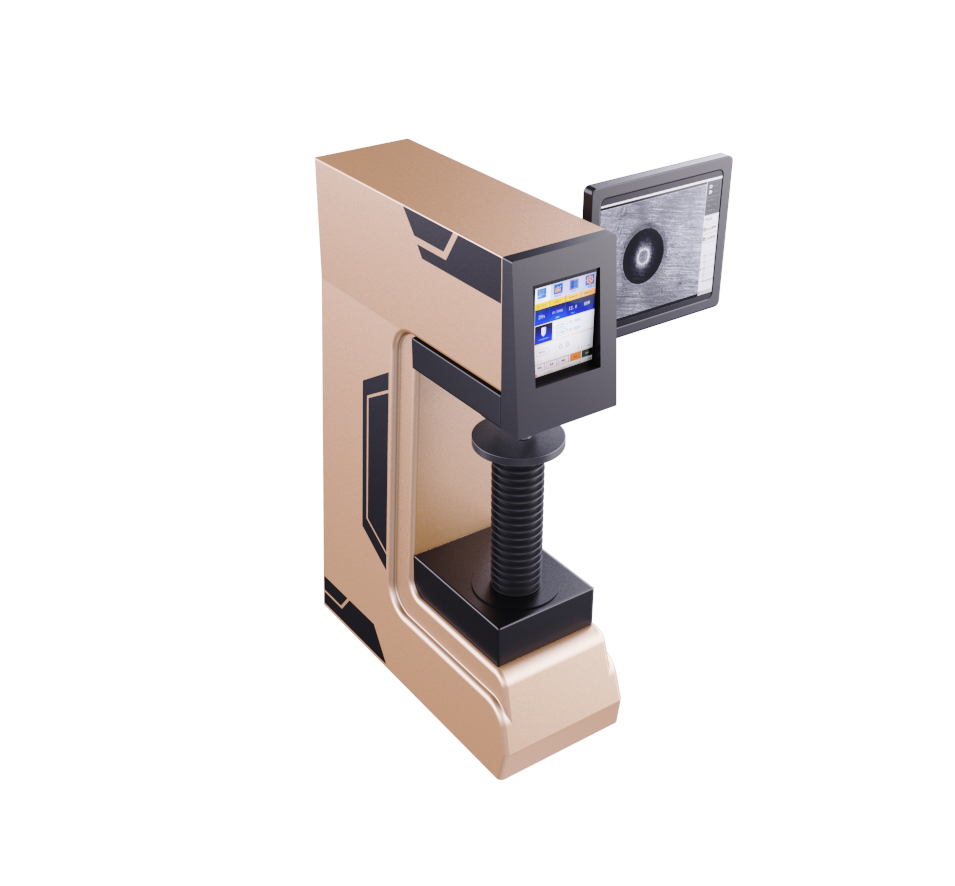

The ZVHBS-3000AET vision fully automatic Brinell hardness tester is equipped with an 8-inch touchscreen and a high-speed ARM processor, providing intuitive display, user-friendly interaction, and simple operation. It offers fast processing speed, extensive database storage, automatic data correction, and provides data trend line reports.

Product Introduction

1. Regardless of the size, position, or distance of the specimen from the indenter, the worktable can automatically lift, load, and measure the Brinell hardness of the workpiece.

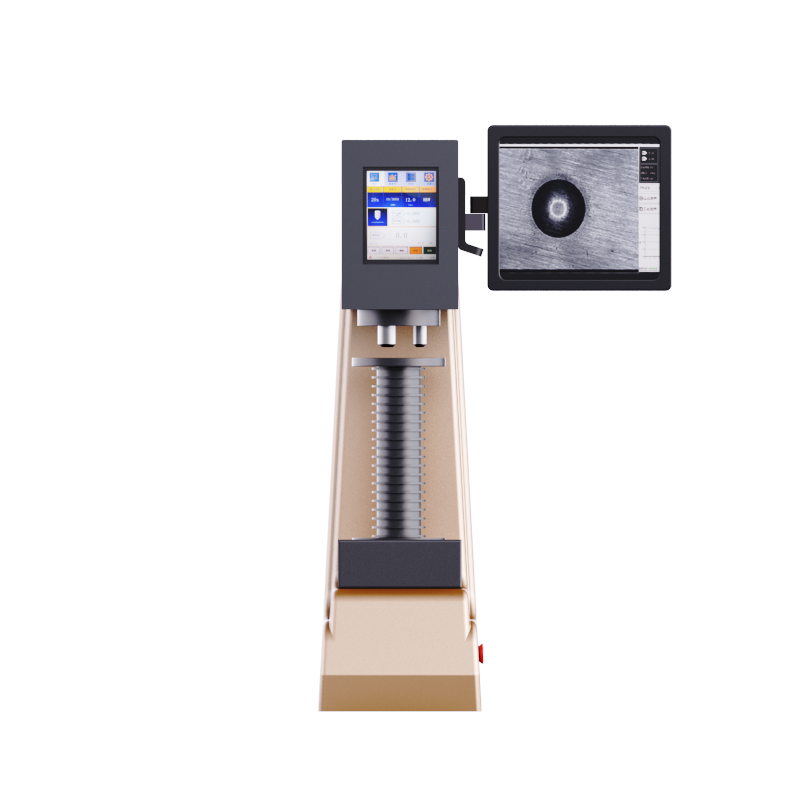

2. The industrial tablet PC and industrial-grade camera are installed on the side of the machine body, utilizing CCD image software processing to directly export data and images, facilitating both manual and automatic image measurement.

3. The machine body is cast in high-quality cast iron in a single molding process, complemented by automotive paint processing, ensuring a sleek and attractive appearance.

4. Equipped with an automatic turret function, enabling automatic switching between the indenter and lens for enhanced user convenience.

5. Maximum and minimum hardness values can be set; when the test value exceeds the set range, an alarm sound is triggered.

6. Features software hardness value correction, allowing direct correction of the hardness value within a specific range.

7. Includes a database function for automatic grouping and storage of test data, with each group capable of storing 10 data sets, supporting storage of over 2000 data points.

8. Offers hardness value curve display, visually demonstrating changes in hardness values.

9. Capable of automatic unit conversion for the entire hardness scale.

10. Implements electronic closed-loop control for applying test force, fully automating loading, dwelling, and unloading.

11. Equipped with high-definition dual eyepieces for measuring indentation diameters under standard test forces ranging from 31.25 to 3000kgf.

12. Provides data output through RS232, USB interfaces (optional).

13.Accuracy compliant with GB/T231.2, ISO6506-2, and ASTM E10 standards.

Application Range

1. Measuring the Brinell hardness of ferrous metals, non-ferrous metals, and bearing alloy materials.

2. Suitable for hard cast steel, aluminum alloys, copper alloys, malleable castings, mild steel, quenched steel, annealed steel, bearing steel, and more.

Technical Specifications

Standard Configuration Of Accessories

The above is the standard configuration. Actual products are subject to physical objects.
