Product Overview

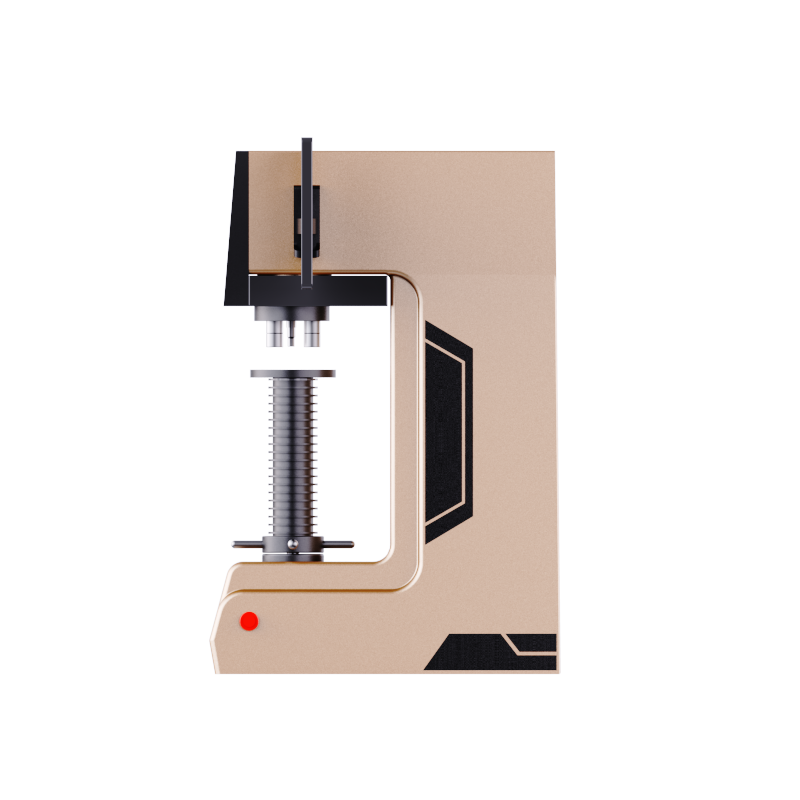

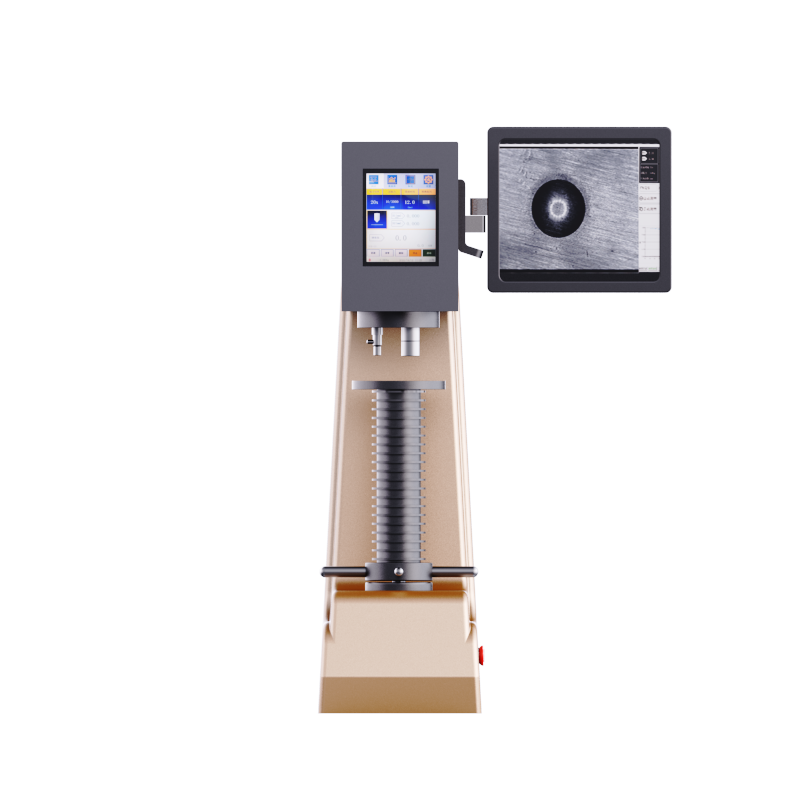

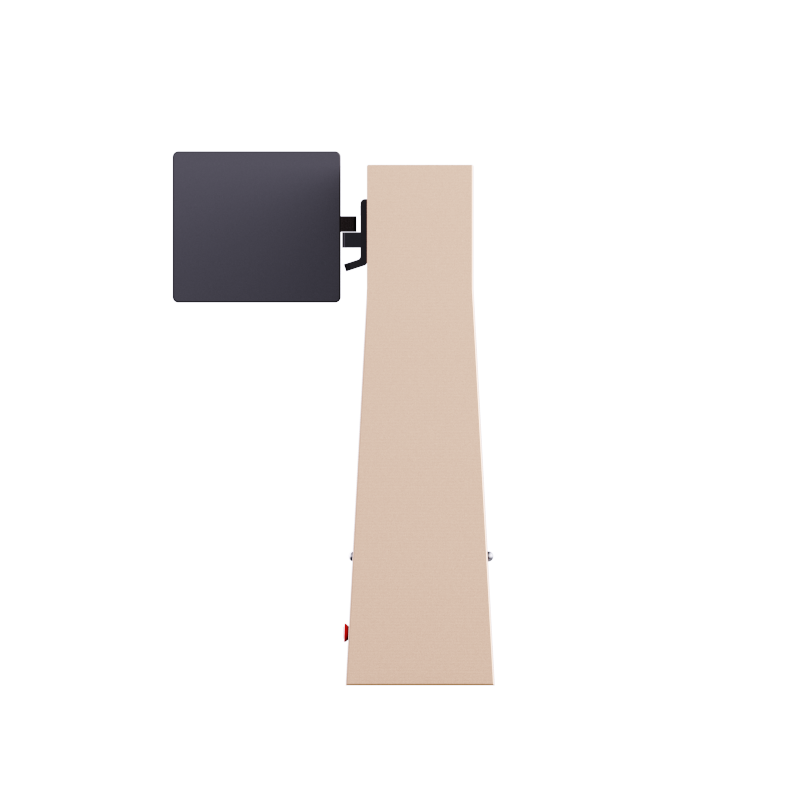

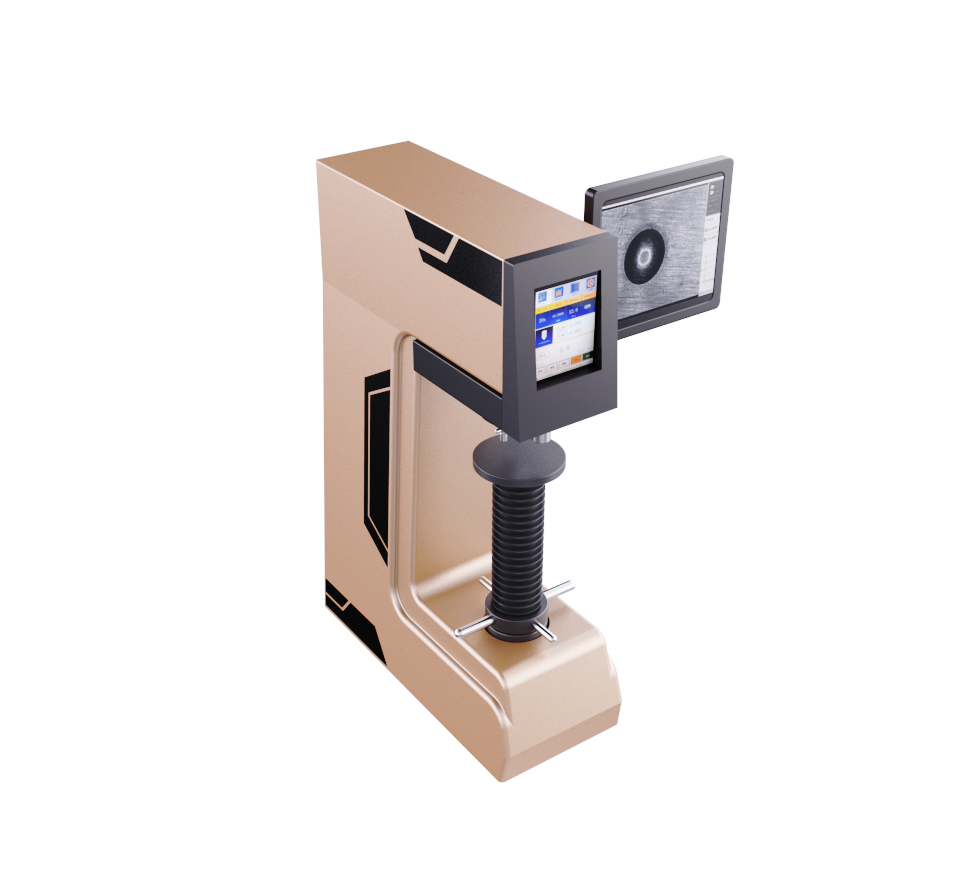

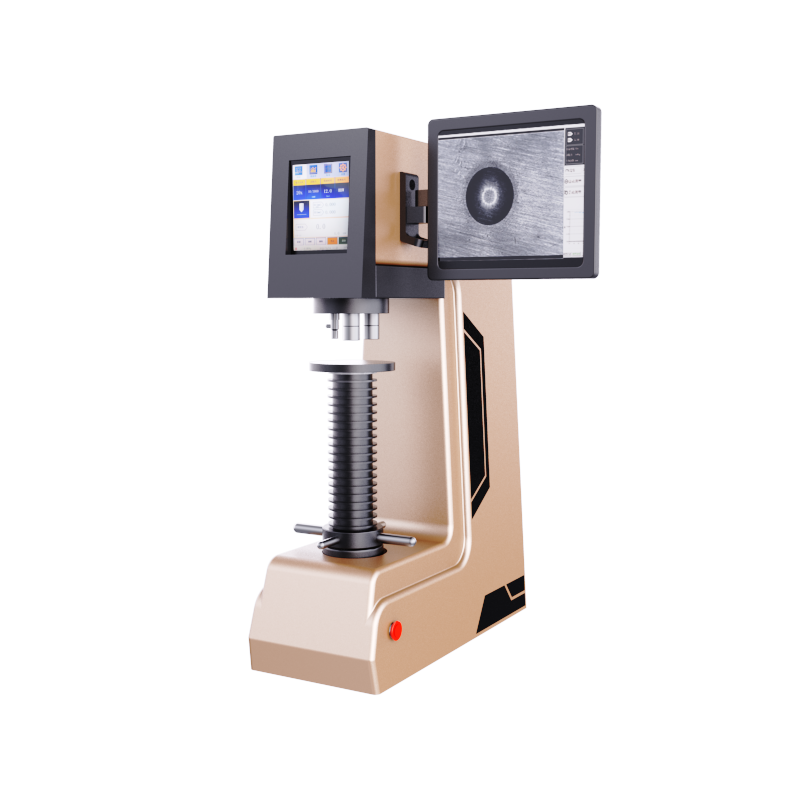

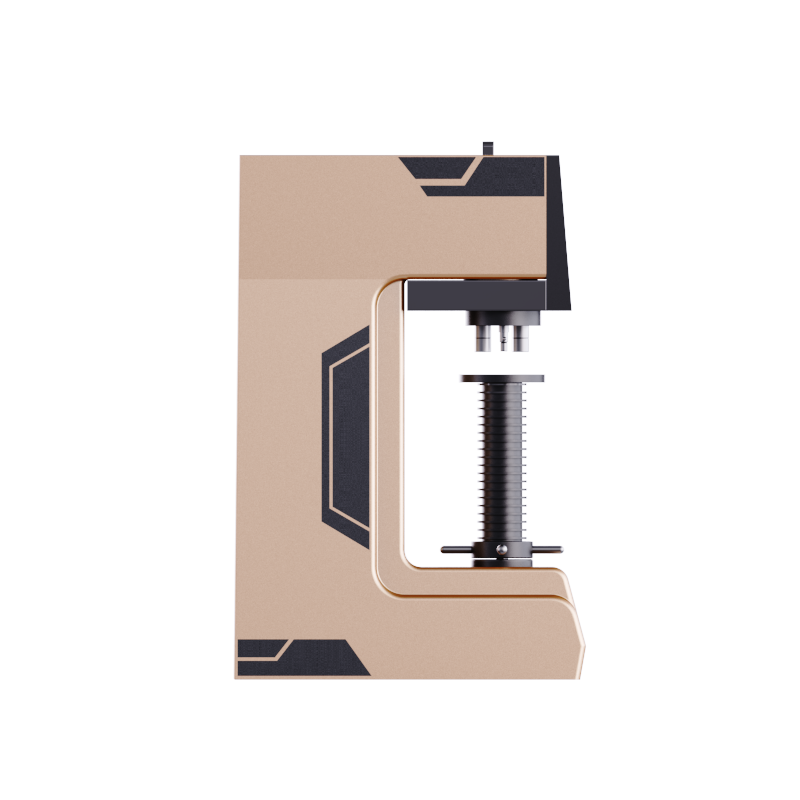

VHBS-3000 AET visual Brinell hardness meter, with 8-inch touch screen and high-speed ARM processor, intuitive display, human-machine interaction, easy operation, fast database storage, automatic data correction, and provide data line report.

Product Features

1.Industrial tablet computer is installed on the side of the body, with built-in industrial-grade camera, using CCD image software to process, directly export data and images, complete manual and automatic measurement of the image, convenient and fast;

2.The fuselage uses high quality cast iron primary casting molding, with the car paint treatment process, the shape is round and beautiful;

3.Configuration of automatic tower function, automatic switch between the pressure head and lens, more convenient to use;

4.The maximum and minimum value of the hardness value can be set. When the test value exceeds the set range, send out an alarm sound;

5.With the function of software hardness value correction, you can directly correct the hardness value within a certain range;

6.With the function of database, the test data is automatically saved in groups, each group can save 10 data, and more than 2,000 data can be saved;

7.With the hardness value curve display function, intuitively display the change of hardness value;

8.Can automatically conduct the unit conversion of the full hardness ruler;

9.Electronic closed-loop control and applied test force, fully realize the automatic operation of load adding, retention and unloading;

10.Equipped with HD optical double objective, it can measure the indentation of different diameters under different standard test forces;

11.And can output data through RS232, USB (optional) interface;

12.The accuracy meets GB / T231.2, ISO6506-2 and American ASTM E10 standards.

Applications

1. Determination the brinell hardness of ferrous metal, non-ferrous metal and bearing alloy materials;

2. Hard cast steel, aluminum alloy, copper alloy, malleable castings, soft steel, tempered steel, annealed steel, bearing steel, etc.

Technical Specifications

Standard Configuration Of Accessories

The above is the standard configuration. Actual products are subject to physical objects.
